Schema & Stability

This page documents the machine-readable contract for the JSON and Graphify formats. If you’re building tooling on top of GraphScribe (or feeding exports to an AI agent), this is what you need to know. If you just want to read exports, you can skip this page.

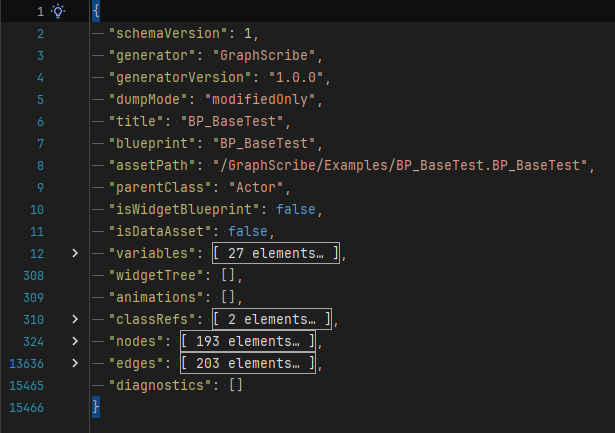

Version stamps

Every JSON and Graphify document carries identity fields at its root:

Field	Value	Where	Meaning
generator	"GraphScribe"	JSON + Graphify	Producer name
generatorVersion	"1.1.0"	JSON + Graphify	Plugin version (kept in sync with VersionName in GraphScribe.uplugin)
schemaVersion	1	JSON root	Shape of the EmitJson IR (variables/nodes/edges/diagnostics/…)
schemaVersion	2	Graphify root	Shape of EmitGraphify + merge linkage (v2 adds evt: event nodes)
dumpMode	full / modifiedOnly / blueprintOnly	JSON + Graphify root	Optional property dump mode used for this document (settings)

dumpMode is stamped on per-asset documents only. The merged ProjectLinkage.graphify.json carries schemaVersion / generator / generatorVersion but no dumpMode (a merge can combine per-asset files produced under different modes).

Markdown and Mermaid are not versioned, they are human-readable views with no machine contract. Treat their exact wording as unstable across releases.

JSON document shape

Root fields of an EmitJson document (see JSON Output for examples):

title, blueprint, assetPath, parentClass, isWidgetBlueprint, isDataAsset, variables[], widgetTree[], animations[], classRefs[], nodes[] (each with pins[]), edges[], diagnostics[].

Graphify document shape

Nodes (nodes[]):

Field	Meaning
id	Stable id to bp: / fn: / evt: / cls: for linkage, var_... for variable rows, widget_N for widget-tree rows
label	Display label (truncated for long variable values)
file_type	Always "code"
source_file	Asset path the node came from
source_location	Optional e.g. "Variables", "ClassRefHard", "Linkage"
origin / hasChildren / category / declaringClass	Optional variable-row metadata
kind / nativeFunction	Optional on evt: nodes, kind: "event" and the raw engine function name (e.g. "ReceiveBeginPlay")

Edges (edges[]): source, target, relation, confidence (always "EXTRACTED"), source_file.

The Graphify stability contract

The most important guarantees for tooling:

1. IDs are stable across exports

• bp:<AssetPath> a Blueprint or DataAsset
• fn:<AssetPath>::<FunctionName> a function inside an asset
• evt:<AssetPath>::<EventName> a native engine event (display name, e.g. BeginPlay. The raw engine function is carried in nativeFunction). Schema v2 made native events first-class callables.
• cls:<ClassPath> a class reference

These are derived from asset/class identity, not from node GUIDs or graph layout. A consumer can persist an ID and re-resolve it after a re-export.

2. Relations are a closed set

The merge step only understands these relations: calls, defines, uses. Per-asset Graphify may also emit contains for local structure (widget tree / variable nesting), the merge drops it. Events and functions are both callables: calls edges connect them (evt: → fn:, cross-asset, and super-calls). If a new relation is ever added to the merge, that’s a schema bump.

3. Merge is forward-compatible

MergeGraphifyLinkage / MergeGraphifyLinkageFromDirectory:

• skip malformed or empty inputs,
• deduplicate stable nodes (first one wins),
• deduplicate identical source|relation|target edges,
• drop edges whose endpoints aren’t stable IDs,
• pass through unknown object fields.

So adding optional fields does not break older consumers. The batch merge re-reads every *.graphify.json under the output directory (skipping ProjectLinkage.graphify.json itself), so folder-by-folder exports accumulate.

4. Diagnostics use one shape

Documents carry a "diagnostics" array only. There is no legacy "warnings" string array. See Diagnostics Codes.

When to bump schemaVersion

Bump the relevant schemaVersion (and document it in the changelog) when a change is not backward-compatible for a consumer that already parses the current shape:

• Renaming or removing a required field from nodes / edges / variables.
• Changing the meaning of an existing field (e.g. what id points at).
• Adding a new relation to the Graphify merge closed set.
• Changing the Graphify ID grammar (bp: / fn: / evt: / cls: prefixes or the :: separator).

Do not bump for:

• Adding an optional field consumers can ignore (forward-compatible).
• Markdown/Mermaid wording changes.
• Bug fixes that make output match the documented shape.
• Adding a new diagnostic code (consumers must ignore unknown codes).

generatorVersion follows the plugin’s semver and may move independently of schemaVersion. A schema bump should also be called out in the changelog under the release that introduced it.
