Obsidian Vaults

Obsidian export turns a folder of Blueprints into an Obsidian vault: a set of linked Markdown notes you can browse, search, and visualize in the free Obsidian app. Every asset gets a note, and every function, event, macro, and graph gets its own sub-note, connected with [[wikilinks]] so Obsidian’s native graph view renders how your whole project connects.

Obsidian is a batch-only format: a vault is many files, so it is written by the folder batch exporter, not the single-asset dialog. There are no Obsidian-specific settings, the export honors the same project settings as every other format.

When to use Obsidian

You want to…	Use
Browse and explore a project like a wiki, with a visual graph	Obsidian
Read one asset as clean text, review it in a PR	Markdown
Feed AI a project-wide call graph	Graphify
Render a diagram anywhere	Mermaid
Drive your own tooling	JSON

The vault is a human-facing format. For AI agents, prefer the Markdown export for per-asset detail and the Graphify export (ProjectLinkage.graphify.json) for cross-asset linkage. The vault README written into every export says the same.

Export a vault

1. In the Content Browser, right-click one or more folders → Export Blueprints with GraphScribe….
2. In the batch dialog, set Format to Obsidian, pick your output directory, and click Export.
3. GraphScribe writes the vault under <Output Directory>/Obsidian/ (batch exports always write into a per-format subfolder).

The single-asset export dialog does not list Obsidian (a vault can’t be a single string). If an Obsidian request ever reaches the single-asset path, it falls back to Markdown.

The vault layout

Obsidian/
├── Dashboard.md                 # vault dashboard (frontmatter + Dataview example queries)
├── README.md                    # layout, note schema, reading order
├── _Classes/
│   └── <ClassName>.md           # one deduplicated note per referenced class
└── Assets/
    └── <ContentRoot>/           # /Game → Assets
        └── <AssetPath>/         # mirrors your Content structure
            ├── <AssetName>.md           # the actor note
            ├── <AssetName>.canvas       # per-asset Canvas layout
            ├── Functions/<Function>.md  # one note per function / custom event
            ├── Events/<Event>.md        # one note per native engine event
            ├── Macros/<Macro>.md        # one note per macro graph
            └── Graphs/<Graph>.md        # one overview note per graph

For example, /Game/Blueprints/BP_BaseTest.BP_BaseTest produces Assets/Blueprints/BP_BaseTest/BP_BaseTest.md plus Functions/, Events/, Macros/, and Graphs/ sub-notes and BP_BaseTest.canvas.

Native engine events use their display names: ReceiveBeginPlay becomes Events/BeginPlay.md. Filenames are sanitized for characters Windows/Obsidian dislike (\ / : * ? " < > | → _), and name collisions get a deterministic suffix (Name_GraphName, then _2, _3, …).

Open the vault

1. Install the free Obsidian app.
2. In Obsidian, choose Open folder as vault and select the Obsidian/ folder you exported.
3. Everything works with core features, no community plugins required:

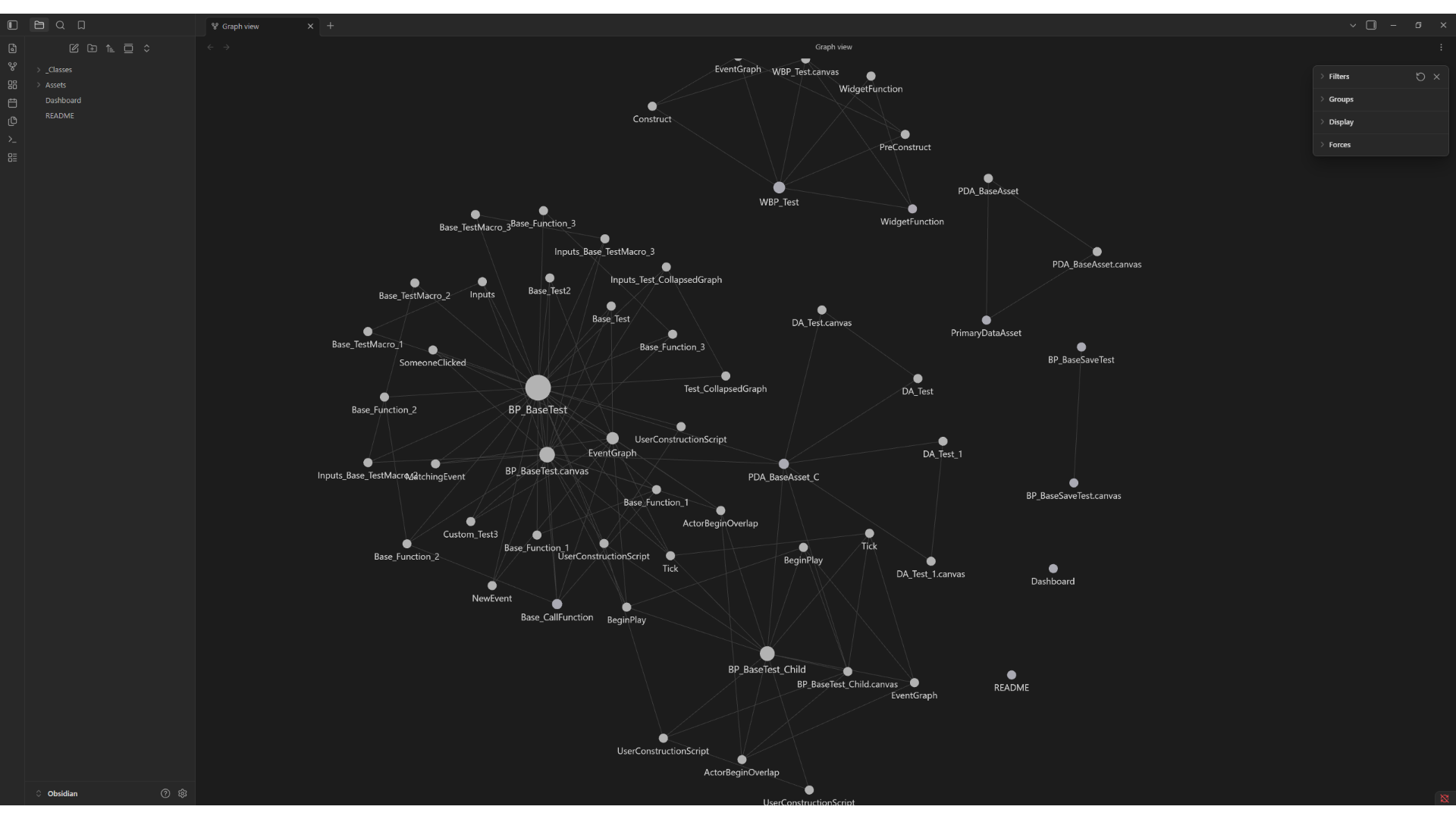

   • Graph view shows the whole note network (the project linkage as [[wikilinks]]).
   • Canvas (a core plugin, enabled by default) opens each asset’s .canvas layout.
   • Mermaid diagrams render inside notes natively.
   • The Dashboard includes example Dataview queries without the optional Dataview plugin installed, those blocks simply show as code.

What each note contains

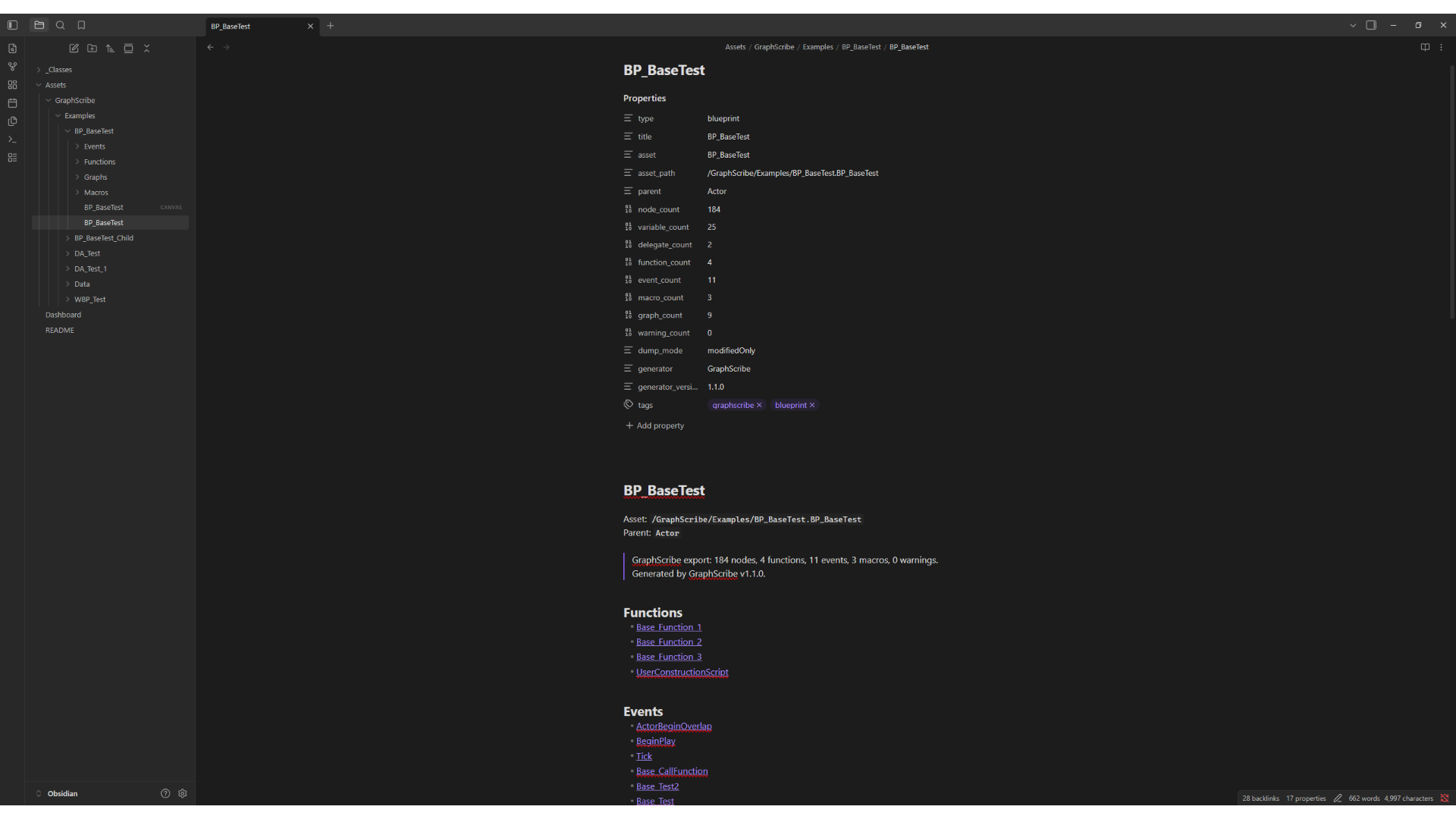

Actor notes (<AssetName>.md)

The note for the asset itself: YAML frontmatter, the title, header lines (asset path, parent/class), a summary quote, index sections ## Functions / ## Events / ## Macros / ## Graphs, ## Warnings (when the export produced diagnostics), the shared asset sections, ## Variables, ## Delegates, ## Class References, ## Widget Tree, ## Animations, the same content as the Markdown export, plus ## Calls (cross-asset calls) and ## Uses (class references).

Function / event / macro sub-notes

Each callable gets its own note:

• # <DisplayName> and a - **Asset:** [[…]] link back to the actor note,
• ## Overview: A fenced Mermaid flowchart LR of the root’s flow (Obsidian renders it inline),
• ## Logic: The inputs/outputs/locals signatures and the full exec walk, same style as Markdown,
• ## Calls: Grouped into ### Project (Blueprints call Blueprints) and ### Engine (plain text, never wikilinks, e.g. - Actor::K2_DestroyActor),
• ## Called by: Which of this asset’s roots execute this callable,
• ## Overrides: Wuper-calls to the parent asset (e.g. a child’s BeginPlay overriding the parent’s).

Graph overview notes (Graphs/<Graph>.md)

One per graph, with type: 'graph' frontmatter, a ## Roots index of the sub-notes it contains, and a ## Overview full-graph Mermaid diagram.

Class notes (_Classes/<ClassName>.md)

One deduplicated note per referenced class (type: 'class', class_name, class_path), linked from actor notes and sub-notes via [[_Classes/…]].

Dashboard and README

Dashboard.md (type: 'dashboard', tags: [graphscribe, dashboard]) ships ready-made Dataview queries against the vault (TABLE … FROM "Assets" WHERE type = "blueprint", Functions, Events, and Classes queries). README.md (type: 'vault-readme') documents the layout, the frontmatter schema for every note type, the fn:/evt: id grammar, section conventions, and the recommended reading order.

YAML frontmatter

Every note opens with a ----delimited frontmatter block, so tooling and Dataview can query the vault:

Note type	Keys
Actor	type, title, asset, asset_path, parent, node_count, variable_count, delegate_count, function_count, event_count, macro_count, graph_count, warning_count, dump_mode, generator, generator_version, tags: [graphscribe, <type>]
Function / event / macro	type, kind (function / custom-event / native-event / macro), asset, asset_path, graph, calls (machine ids this root executes), called_by (machine ids of this asset’s roots calling it), overrides, tags
Graph overview	type: 'graph', kind, graph, asset, asset_path, node_count, root_count, tags
Class	type: 'class', class_name, class_path, tags
Dashboard / README	type: 'dashboard' / type: 'vault-readme', tags

Machine ids and wikilinks

Sub-notes reference each other with machine ids, the same fn: / evt: grammar as the Graphify export:

• fn:/GraphScribe/Examples/BP_BaseTest.BP_BaseTest::Base_Function_1 a function,
• evt:/GraphScribe/Examples/BP_BaseTest.BP_BaseTest::BeginPlay a native event (display name),
• bp:<AssetPath> an asset, cls:<ClassPath> a class reference.

Wikilinks use Obsidian’s [[path|text]] form, e.g. [[Assets/GraphScribe/Examples/BP_BaseTest/Functions/Base_Function_1|Base_Function_1]], with cross-asset links labeled BP_Other::SomeFunction. Engine (/Script) calls are written as plain text, they are not part of your project and never become wikilinks.

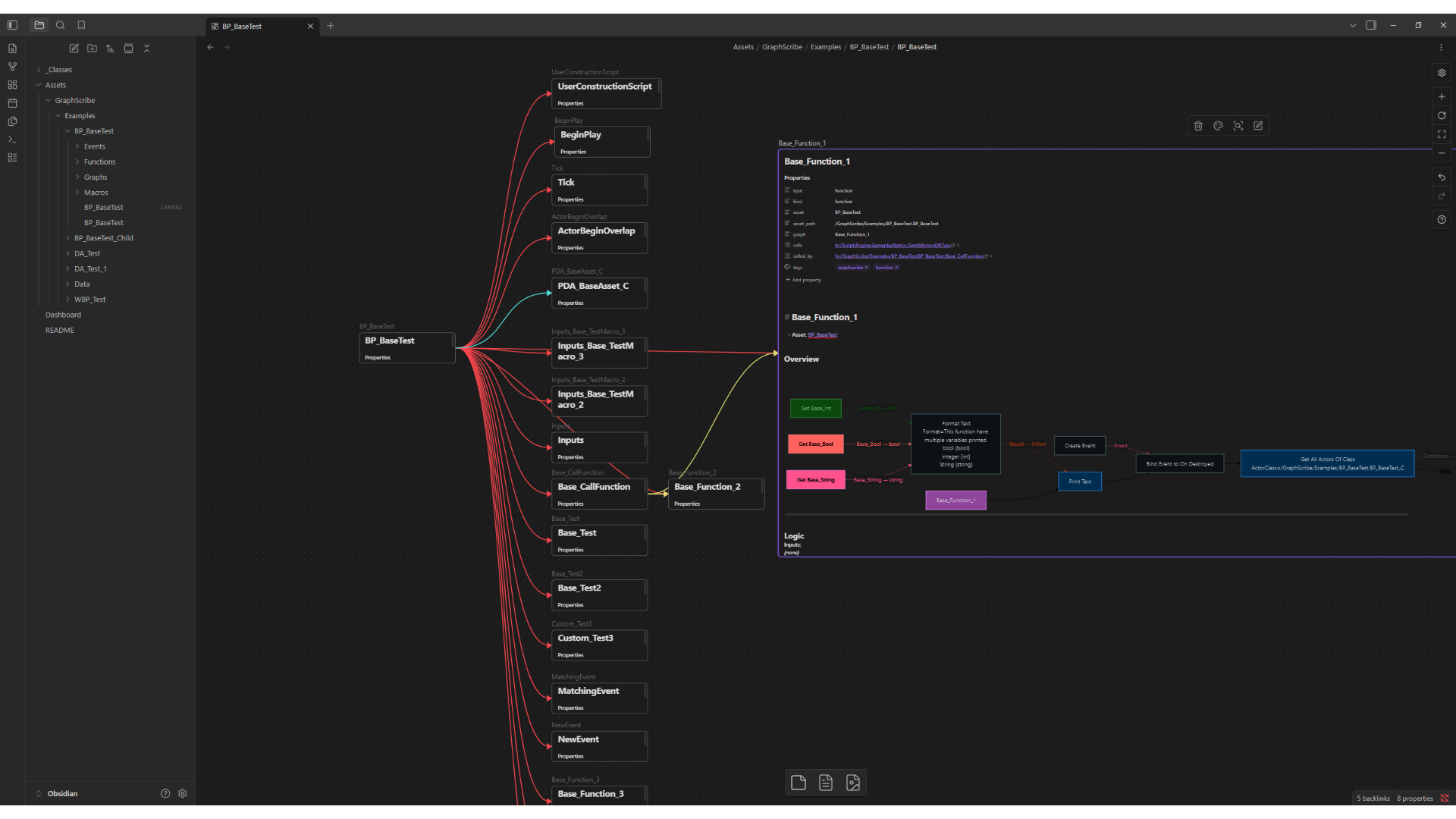

The per-asset Canvas

Every asset gets <AssetName>.canvas (Obsidian’s Canvas core format): the actor note at the top-left, each sub-note positioned from its graph coordinates, and class notes along the right, connected with colored edges (1 = defines, 3 = same-asset calls, 5 = uses). Canvas ids are deterministic, so re-exporting produces a byte-identical layout.

Notes and limits

• Batch-only: Vaults come from the folder exporter, there is no single-asset Obsidian export.
• No Obsidian-specific settings: The vault honors Default Save Directory, Property Dump Mode, and the other project settings.
• Not versioned: Like Markdown and Mermaid, the vault is a human-readable view with no machine contract. The exact wording of notes may change between releases. Frontmatter ids are stable, though.
• Canvas is additive: Reopening and editing a canvas is fine, re-exporting replaces the files it writes.
• DataTables: are never exported, so they never appear in a vault.
