Markdown

When you export a Blueprint as Markdown, you get a clean text file that describes the whole asset. Here’s what you’ll find in it and how to read each part.

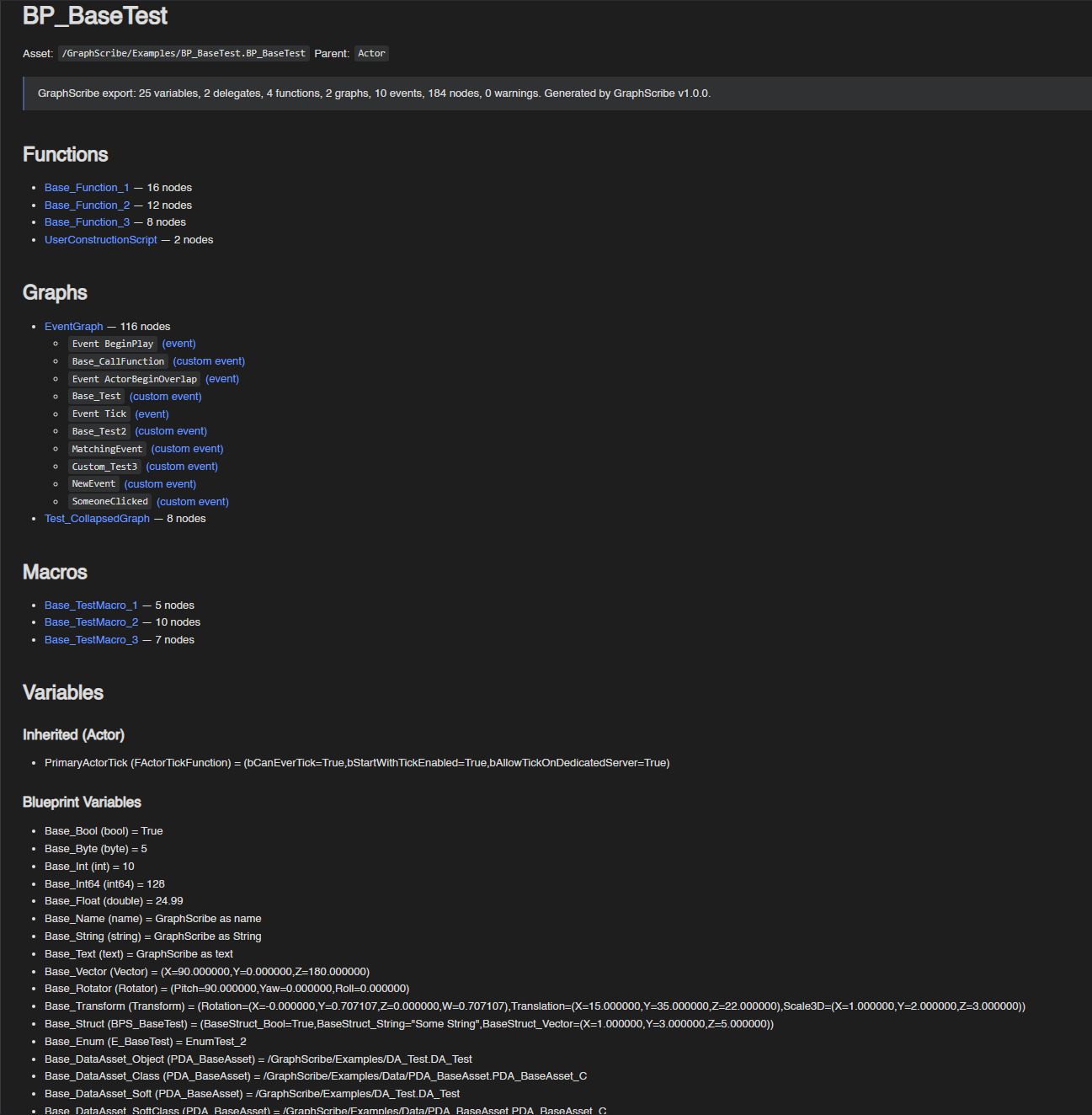

A real Markdown export open in a text editor

The header

Section titled “The header”

Every file starts with the asset’s name, path, and parent class, plus a one-line summary of what was exported:

# BP_BaseTest


Asset: `/GraphScribe/Examples/BP_BaseTest.BP_BaseTest`
Parent: `Actor`


> GraphScribe export: 25 variables, 2 delegates, 4 functions, 2 graphs, 10 events, 184 nodes, 0 warnings.
> Generated by GraphScribe v1.1.0.

Widget Blueprints and DataAssets add their kind to the header, and DataAssets list their class instead of a parent:

# WBP_Test


Asset: `/GraphScribe/Examples/WBP_Test.WBP_Test`
Type: Widget Blueprint
Parent: `UserWidget`
# DA_Test


Asset: `/GraphScribe/Examples/DA_Test.DA_Test`
Type: Data Asset
Class: `PDA_BaseAsset_C`

Warnings

Section titled “Warnings”

If the export produced any diagnostics, they appear near the top of the file directly after the summary, or after the Functions/Graphs/Macros index when the asset has graphs with a severity badge:

## Warnings


- [Info] collect.empty_graph: No graph nodes found on this Blueprint. (node: bp:/GraphScribe/Examples/Data/BP_BaseSaveTest.BP_BaseSaveTest)

Badges are [Info], [Warning], or [Error]. The section is omitted entirely when there are no diagnostics.

The Warnings and Variables sections of a Markdown export

Section order

Section titled “Section order”

The body is organized as: index sections ## Functions / ## Graphs / ## Macros (as present), then ## Variables, ## Delegates, ## Class References, ## Widget Tree (Widget Blueprints only), and ## Animations (Widget Blueprints with animations), followed by the detailed walk of each function/graph/macro.

Index entries link to their section and count their nodes, event graphs also list their events:

## Functions


- [Base_Function_1](#base_function_1): 16 nodes
- [UserConstructionScript](#userconstructionscript): 2 nodes


## Graphs


- [EventGraph](#eventgraph-graph): 116 nodes
  - [`Event BeginPlay` (event)](#event-beginplay-event)
  - [`Base_CallFunction` (custom event)](#base_callfunction-custom-event)


## Macros


- [Base_TestMacro_1](#base_testmacro_1): 5 nodes

Variables

Section titled “Variables”

The Variables section is a grouped tree, not a flat table. Subsections appear in this order, as present:

  • ### Components component templates (SCS components and inherited C++ component subobjects), with designer-set template values nested as ComponentName.Property rows.
  • ### Inherited (<ClassName>) one group per ancestor class, reflected property dump rows whose value differs from the direct parent defaults (controlled by the Property Dump Mode).
  • ### Blueprint Variables variables declared on the Blueprint itself (rendered as ### Own Class on DataAssets).
## Variables


### Inherited (Actor)


- PrimaryActorTick (FActorTickFunction) = (bCanEverTick=True,bStartWithTickEnabled=True,bAllowTickOnDedicatedServer=True)


### Blueprint Variables


- Base_Bool (bool) = True
- Base_Float (double) = 24.99
- Base_Vector (Vector) = (X=90.000000,Y=0.000000,Z=180.000000)
- Base_IntArray (TArray<int32>) = (90,101)
- Base_DataAsset_Object (PDA_BaseAsset) = /GraphScribe/Examples/DA_Test.DA_Test
- DefaultSceneRoot (USceneComponent*) = null
  • Nested categories render as headings (#### Game Feature > Actions), containers and structs nest as indented bullets with index paths (PrimaryActorTick.bStartWithTickEnabled), and each leaf is Name (Type) = value:
### Inherited (Actor)


- PrimaryActorTick (FActorTickFunction)
  - PrimaryActorTick.bStartWithTickEnabled (bool) = False
  • Long values are truncated with … for readability, and a note at the end of the section points at the JSON format for full values:
> Long values are truncated in the variables tree, so export as JSON to view the full values.

Class References

Section titled “Class References”

Class references found in the CDO / DataAsset properties (e.g. TSubclassOf, TSoftClassPtr) are listed with their property path and whether the reference is hard or soft:

## Class References


- `Base_DataAsset_Class` → `PDA_BaseAsset_C` (hard)
- `Base_DataAsset_SoftClass` → `PDA_BaseAsset_C` (soft)

Widget Tree

Section titled “Widget Tree”

Widget Blueprints include the full UMG hierarchy, indented to match the editor:

## Widget Tree


- WBP_Test
  - Overlay_16 (Overlay)
    - Image_55 (Image)
    - HorizontalBox_42 (HorizontalBox)
      - Button_46 (Button)
        - TextBlock_75 (TextBlock)
      - Spacer_111 (Spacer)
      - TextBlock_148 (TextBlock)

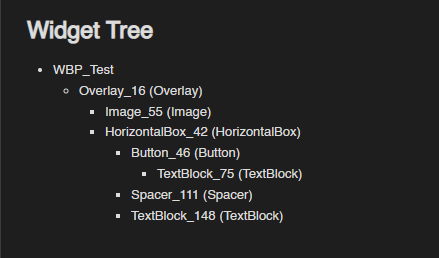

The Widget Tree section of a Widget Blueprint export

Reading the function walks

Section titled “Reading the function walks”

Each function/graph gets its own section. Events and functions use headings like ## Base_Function_1, ## EventGraph (graph) with ### `Event BeginPlay` (event) roots inside. Bound handler events deepen one heading level per Bind Event nesting.

Each section lists its signature blocks and then walks the graph in execution order:

## Base_Function_2


**Inputs:**


- `(f)NameAsString` (string)


**Locals:**


- `(v)SanitizedString` (string)


**Outputs:**


- `bEmpty` (bool = true)
- `SanitizedName` (string)


- #1 Set (v)SanitizedString (SanitizedString = #2 Trim Trailing(SourceString = (f)NameAsString))
- #1 -> #3 For Each Loop (Array = Base_IntArray)
  - LoopBody:
    - #4 Print String (InString = #5 To String (Integer)(InInt = #3.Array Element))
  - Completed:
    - #6 Branch (Condition = #7 Is Empty(InString = (v)SanitizedString))
      - true:
        - #8 Return (bEmpty = true, SanitizedName = null)
      - false:
        - #9 Return (bEmpty = false, SanitizedName = #10 To Lower(SourceString = (v)SanitizedString))

How to read it:

  • The Inputs: / Outputs: / Locals: blocks list the signature params: inputs as (f)Name (type), locals as (v)Name (type), outputs as Name (type, with the default when one is set).

  • The walk is flat for linear chains each line is the next node in execution order, cited by a walk-local id #N. #2 --Completed-> #3 means the exec edge into the Completed pin of a latent node (e.g. Delay), and #8 --break-> #5 the exec edge into a loop’s Break pin.

  • Multi-output pins (Branch, loops, Switch, Sequence…) indent into nested list items under their pin name:

    - Event BeginPlay -> #1 Async Load Game from Slot (latent, SlotName = Slot)
      - then:
        - #2 Print String (InString = Loading Save Game)
      - Completed:
        - #3 Branch (Condition = #1.bSuccess)
          - true:
            - #4 Print String (InString = Save Game Loaded)
          - false:
            - #8 Print String (InString = Failed to load save game)

  • Call args render inline as Name = Value, when a call has 3+ args or long values, they wrap onto indented lines.

  • Value provenance where a value came from, is shown with compact chains and cites:

    • variables as their name (Base_IntArray), function inputs as (f)NameAsString, locals as (v)SanitizedString,
    • already-walked producers as #N.Pin (e.g. #1.bSuccess, #3.Array Element),
    • pure producers expanded as chains (Base_Struct->#2 Break BPS Base Test->BaseStruct_Bool),
    • re-entries into an already-walked node as (reenter).

  • Returns render as #8 Return (bEmpty = true, SanitizedName = null) with unset outputs as null. Latent nodes are marked (latent), and loops/push pins use their own branch headers (e.g. - LoopBody:, - After Push:).

Values are compact by design so long pin trees stay readable. For the exact machine data (every node, pin, edge, and default), use the JSON format instead. For a picture of the flow, use Mermaid. Think of Markdown as the spec.
